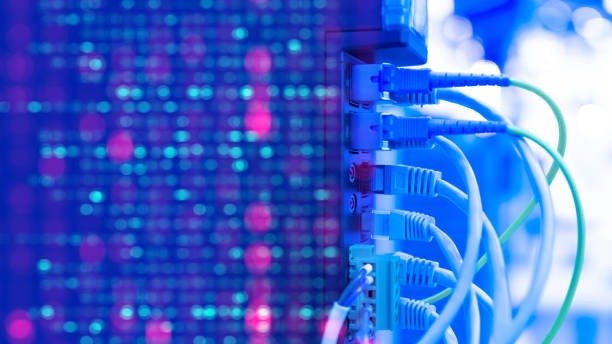

Structured Cabling refers to the standardized approach for installing and organizing cables and related components within a building or across a campus to support various telecommunications and data systems, including computers, telephones, and other network devices. The goal is to create a reliable and flexible network infrastructure that can support current and future needs, while minimizing disruptions to operations.
Here are the key components and concepts of structured cabling:
Cabling Standards
TIA/EIA-568: A set of standards that define wiring and cabling protocols for commercial buildings. It includes specific guidelines for cable types, installation methods, and other key factors.
ISO/IEC 11801: The international standard that deals with cabling systems for data transmission.
Cat5e, Cat6, Cat6a, Cat7, and Cat8: These refer to different categories of twisted pair cables, such as Ethernet cables, that support varying data transfer speeds and distances.
Main Components of Structured Cabling
Cabling: Includes both copper cables (such as twisted pair or coaxial cables) and fiber optic cables.
Patch Panels: Centralized locations where cables from various areas come together. They allow easy management and maintenance of connections.
Racks and Enclosures: Used to house networking equipment and components like patch panels, switches, and routers in a neat and organized manner.
Jacks and Outlets: Wall-mounted sockets where devices are going to be plugged into the network.
Cable Trays and Conduits: Physical pathways that guide and organize the cabling throughout a building.
Faceplates: Used to mount the outlets and make the connections more accessible.
Cabling Topologies
Structured cabling can be designed based on the needs of the network. Some common topologies include:
Star Topology: This is where all cables from devices are routed back to a central hub or switch.
Bus Topology: Older topology that connect devices along a single backbone.
Ring Topology: Less common but used in specific setups where each device connects to its neighbors, forming a ring.
Cabling Segments
Structured cabling systems are typically divided into the following subsystems:
Horizontal Cabling: Runs from the telecommunications room to individual workstations or outlets, typically on each floor of a building.
Backbone Cabling: The main cabling that connects different floors, buildings, or different parts of a campus.
Work Area: The final connection between the cabling infrastructure and end-user devices (e.g., computers, printers).
Telecommunications Room: Where network equipment like switches, routers, and patch panels are housed.
Fiber Optic vs. Copper Cables
Copper Cables (Cat5e, Cat6, etc.): Used for shorter distances and typically for office environments. They are cheaper but have limitations in speed and distance.
Fiber Optic Cables: Used for high-speed, long-distance transmission. Ideal for backbone cabling and when high data throughput or low latency is required.
Benefits of Structured Cabling
Future-Proofing: Structured cabling allows easy upgrades without major disruptions, ensuring the infrastructure supports future technologies.
Scalability: A well-designed structured cabling system can support network growth, expansion, and changes.
Reduced Downtime: The organized system makes troubleshooting and maintenance easier, reducing network downtime.
Improved Performance: Properly installed cabling ensures minimal interference and maximum signal integrity, which improves overall network performance.
Reduced Complexity: A well-planned system reduces clutter and the complexity of managing various cables and connections.Structured Cabling solution Benefits
Best Practices
Cable Management: Use cable organizers, trays, and ties to prevent tangling, damage, or signal interference.
Labeling: Properly label cables, outlets, and patch panels for easier identification and troubleshooting.
Testing: Ensure cables are tested for performance and compliance with standards to avoid network issues.
Compliance with Standards: Follow the relevant cabling standards to ensure quality, safety, and compatibility with future systems.
How Many Times is it Done?
Structured cabling is typically done once during the initial installation or when a significant upgrade to a building or network is required. However, how often it is revisited or redone depends on several factors, such as the growth of the organization, technological advancements, or the condition of the existing infrastructure. Such scenarios may include:
New Construction or Renovation
During the construction of a new building or a major renovation project, structured cabling is designed and installed from the start. This is often the most significant installation, as it sets the foundation for the entire network infrastructure.
Network Upgrades or Expansion
As businesses grow and their networking needs evolve, cabling might need to be upgraded or expanded. For example, if the organization moves from 1Gbps to 10Gbps Ethernet, or if new technologies like fiber optics are required for faster data transfer, an upgrade to the structured cabling system may be necessary.
Expansion can include adding new workstations, additional floors, or new buildings to the network, requiring additional cabling.
Technology Changes
If new technologies or equipment come into play that require higher speeds or different kinds of connections (e.g., transitioning from copper to fiber optic for backbone cabling), the structured cabling might need to be replaced or modified.
For example, if a company transitions to 10G Ethernet, they may need to replace Cat 5e or Cat 6 cables with Cat 6a or higher to handle the increased data load.
Maintenance and Replacements
While structured cabling is generally designed to last 15-25 years with minimal maintenance, cables and other components can wear out over time. Physical damage, signal degradation, or interference could necessitate the replacement of certain segments of the cabling.
Routine inspections and testing every few years can help identify weak points and determine when replacements are needed. This is especially important in environments with heavy network traffic.
Compliance and Standards Updates
Changes in local building codes or industry standards (such as new safety or environmental regulations) might prompt a revisit of the structured cabling installation to ensure compliance.
For example, newer standards might introduce better methods for organizing or protecting cables, or new fiber types may become available.
Troubleshooting and Repairs
If network performance issues arise, it may indicate a need to address the cabling infrastructure. Troubleshooting could uncover problems such as faulty cables, poor connections, or physical damage, leading to repair or re-cabling in specific areas.https://www.hubtech.co.ke/structured-cabling-and-networking/
Conclusion:
Structured cabling is typically a long-term investment that requires minimal changes once installed unless there’s a need for technological upgrades, expansion, or repairs. After the initial installation, it might only need revisiting every 5 to 10 years for testing, maintenance, or upgrades, depending on the organization’s growth and changes in technology. It is essential in IT for creating efficient, organized, and scalable networks. By adhering to industry standards and practices, businesses can ensure their network infrastructure is reliable, easy to maintain, and ready for future upgrades.
